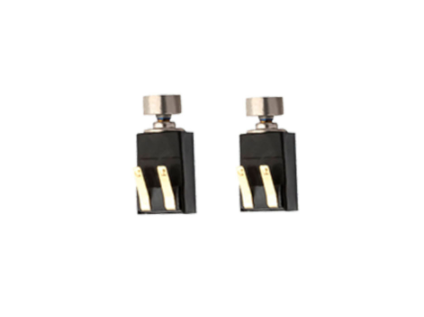

Spring Contact Vibration Motor Low Current Z0408-TP

Low current 26mA Spring Contact 4mm Vibration Motor china

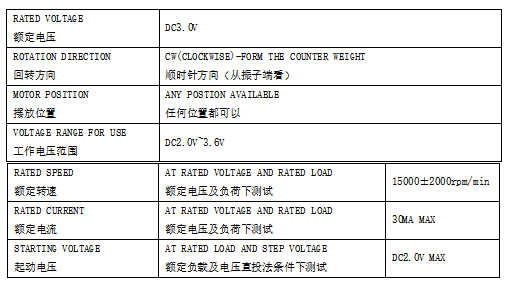

Voltage:3v

current:max 30ma

dimetion:4*8mm

Spring Contact Vibration Motor Low Current Z0408-TP



Share
  • Product Details
  • Download


Low-current DC motor spring contact vibration motor Z0408-TP


This motor is mainly for  low power consumption  design like smart watch.

The motor is surrounded by a rubber boot that allows it to be press fit into the desired location in your devices housing.


If the application is  3volt coin cell, it will be very nice to use this vibration motor.

Spring Contact Vibration Motor Low Current Z0408-TP

Spring Contact Vibration Motor Low Current Z0408-TP

Spring Contact Vibration Motor Low Current Z0408-TP


Low current,strong vibration,tiny dimention,copper coil,low noise,quick feedback make this motor widely apply for :


Spring Contact Vibration Motor Low Current Z0408-TP

Spring Contact Vibration Motor Low Current Z0408-TP
