Z0610-DX Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0610-DX | 3.0 | 2.3 | 12000±3000 | 100 | 120 | 29 | 2.7~3.3 |

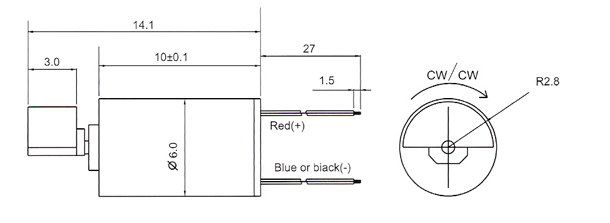

Z0610-DX Vibration Motor Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Z0610-DX Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0610-DX | 3.0 | 2.3 | 12000±3000 | 100 | 120 | 29 | 2.7~3.3 |
Z0610-DX Vibration Motor Drawing
