Q0610P Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0610P | 3.0 | 1.0～3.2V | ≤110 | 21000±3000 | ≤223 | ≤0.9 | 2.2±20% |

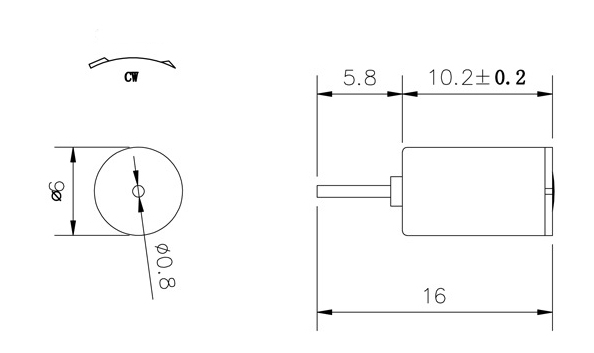

Q0610P Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Q0610P Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0610P | 3.0 | 1.0～3.2V | ≤110 | 21000±3000 | ≤223 | ≤0.9 | 2.2±20% |
Q0610P Drawing
