Q0612P Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0612P | 3.0 | 1.0～3.2V | ≤48 | 9000±3000 | ≤95 | ≤0.9 | 2.2±20% |

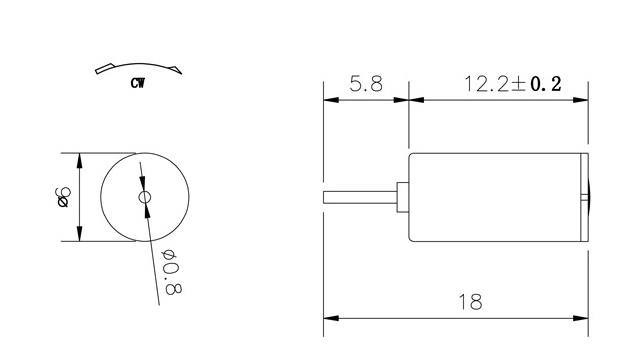

Q0612P Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Q0612P Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0612P | 3.0 | 1.0～3.2V | ≤48 | 9000±3000 | ≤95 | ≤0.9 | 2.2±20% |
Q0612P Drawing
