Q0615 Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0615 | 2.4V | 1.0～3.2V | ≤100 | 26000±3000 | ≤1200 | ≤0.9 | 2.2±20% |

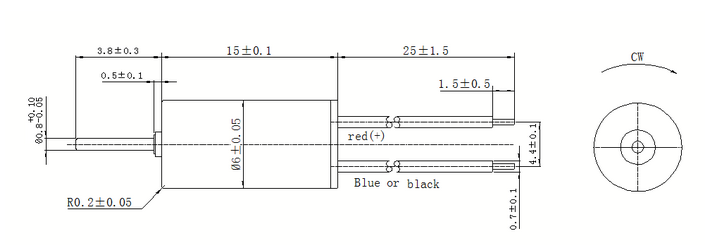

Q0615 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Q0615 Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0615 | 2.4V | 1.0～3.2V | ≤100 | 26000±3000 | ≤1200 | ≤0.9 | 2.2±20% |
Q0615 Drawing
