C0827 Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| C0827 | 3.0 | 2.3 | 12000±2500 | 80 | 120 | 10 | 2.7~3.3 |

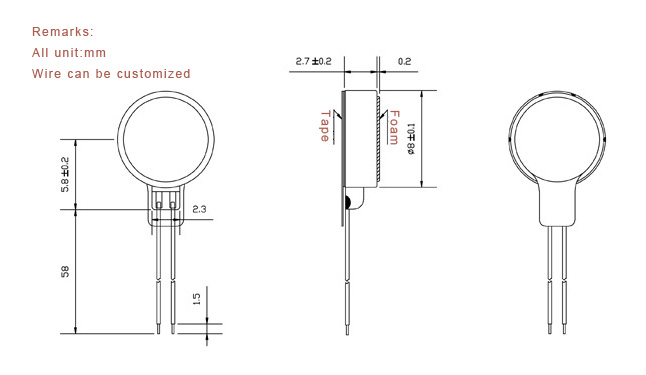

C0827 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
C0827 Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| C0827 | 3.0 | 2.3 | 12000±2500 | 80 | 120 | 10 | 2.7~3.3 |
C0827 Drawing
