B0625 BLDC motor Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| B0625 | 3.0 | 2.5 | 15000±3000 | 80 | 175 | 10 | 2.7-3.3 |

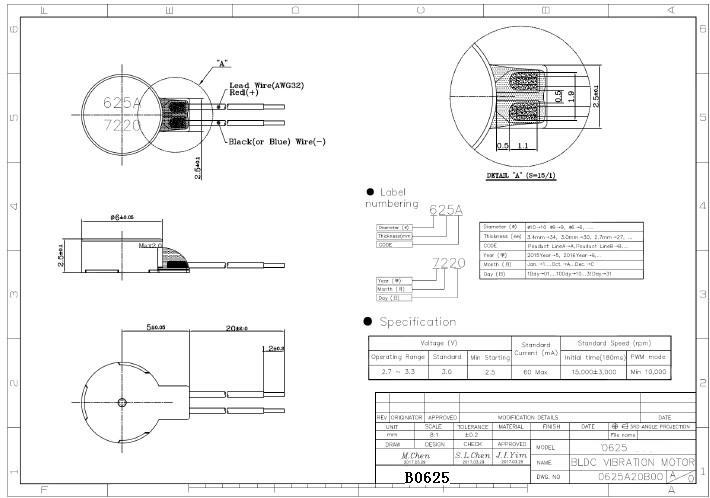

B0625 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net

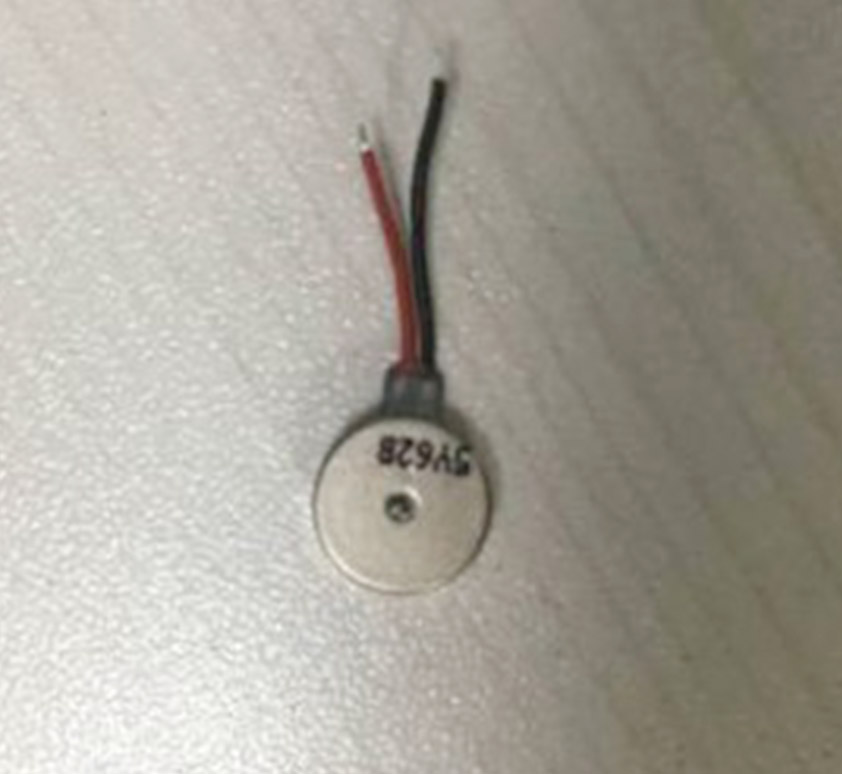

BLCD Vibrator
Diameter: 6mm
B0625 BLDC motor Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| B0625 | 3.0 | 2.5 | 15000±3000 | 80 | 175 | 10 | 2.7-3.3 |
B0625 Drawing
