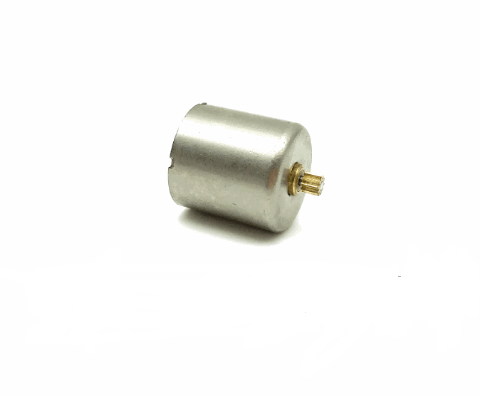

Coreless Brushless DC Motor B1718
Advantage for 1718 BLDC motor:
Radial rotation/circumferential rotation (flat)
Low noise and low power consumption
Strong seismic sensation with simple structure
Strong reliability and short response time
Small inertia and sensitive start
Radial rotation/circumferential rotation (flat)
Low noise and low power consumption
Strong seismic sensation with simple structure
Strong reliability and short response time
Small inertia and sensitive start
Characteristics for B1718 BLDC motor:
| voltage | no load current (shaft 1.5mm) | out power max | no load speed | resistance | stall torque | friction torque |
| 3V | 0.095A | 1.9W | 14000RPM | 1.07OHM | 5.37mNm | 0.18mNm |
| 6V | 0.049A | 1.92W | 14000RPM | 4.3OHM | 5.34mNm | 0.18mNm |
| 12V | 0.027A | 1.4W | 14000RPM | 17.1OHM | 5.38mNm | 0.18mNm |
| 24V | 0.018A | 1.93W | 14000RPM | 68.8OHM | 5.36mNm | 0.17mNm |
Drawing for 1718 BLDC motor:
Color:silver,black and colorful is customized.

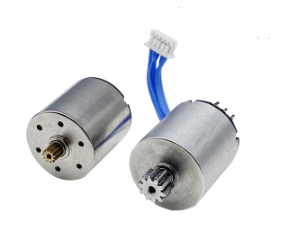

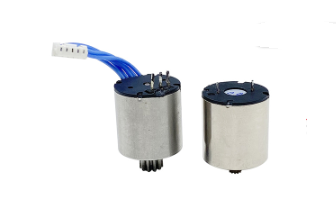

Contact for BLDC motor B1718:FPC or pin or gear
Application for BLDC motor:drone,medical device,smart lock,electric tool,coffee machine,electrci toothbrush......
