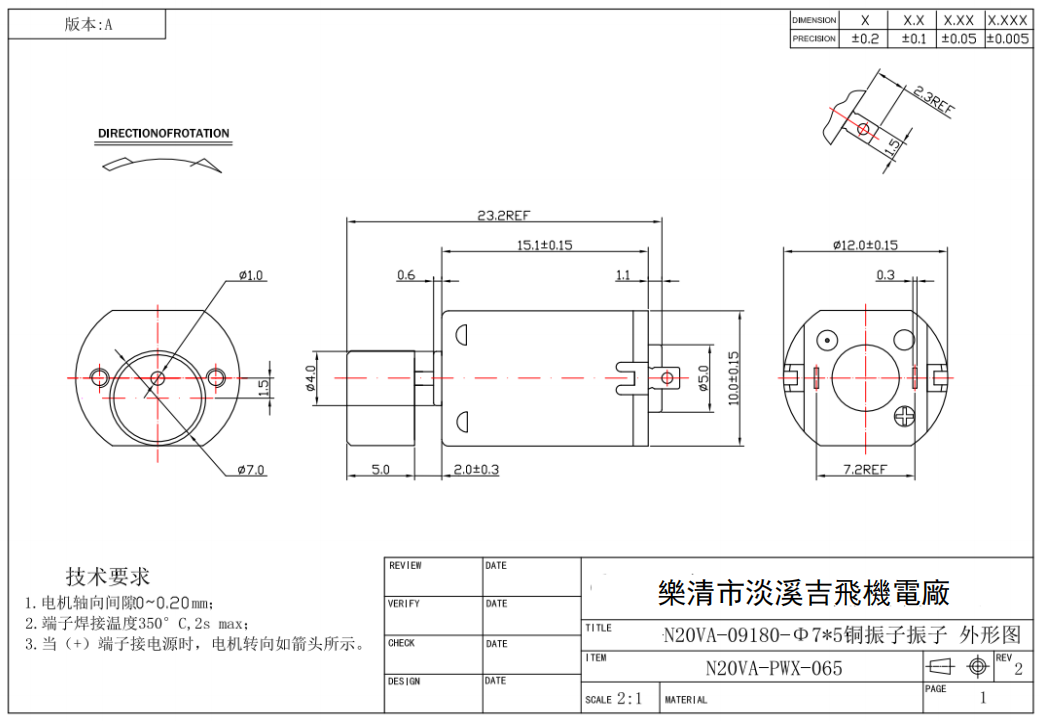

Micro DC motor N20VA-09180
FF-N20 Brushed DC Motor
Massager motor
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Stall Current(mA) | Operating Voltage(V) |
| N20VA | 3.3 | 1.6 | 8000±2500 | 160 | 430 | 2.5~4.5 |
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net

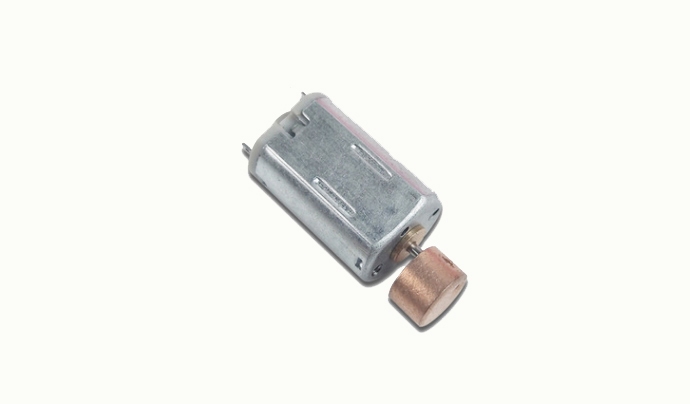

Micro DC motor
High quality motor casing
Excellent material selection for motor selection
Made with high-quality SECC technology
Cheng, corrosion-resistant, not easy to rust
Pure copper motor rotor
Produce precision coils using pure copper windings, with low current, good conductivity, and low heat generation
Micro DC motor N20VA-09180
FF-N20 Brushed DC Motor
Massager motor
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Stall Current(mA) | Operating Voltage(V) |
| N20VA | 3.3 | 1.6 | 8000±2500 | 160 | 430 | 2.5~4.5 |
