T0406-11.1 Characteristic
Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
T0406-11.1 | 3.0 | 2.6 | 10000±2500 | 100 | 120 | 28.5 | 2.6~3.4 |

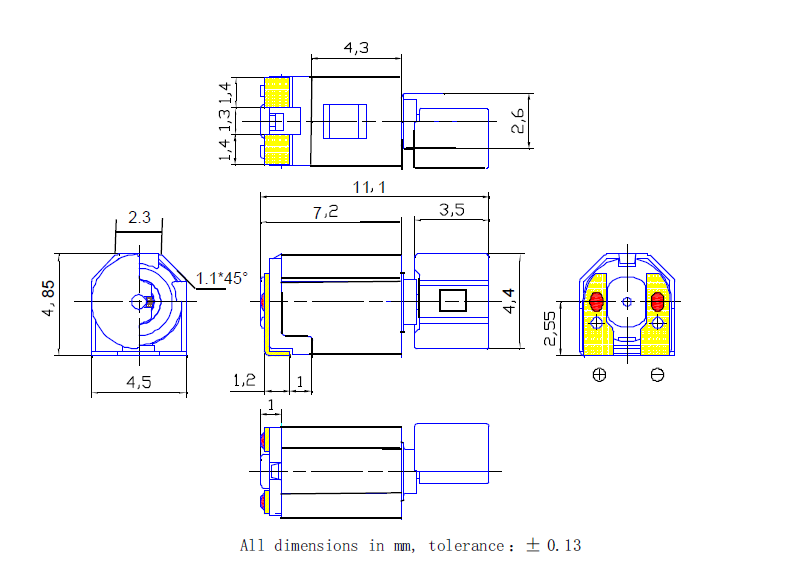

T0406-11.1 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
T0406-11.1 Characteristic
Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
T0406-11.1 | 3.0 | 2.6 | 10000±2500 | 100 | 120 | 28.5 | 2.6~3.4 |
T0406-11.1 Drawing
